HSL-Compact

New high-security locks without conversion chaos and expense

Easy retrofitting of old prison locks without door replacement and time-consuming conversion

With the new modular lock system HSL-C, STUV Prison Solutions enables the simple and quick conversion of existing detention room doors to the latest HSL double-bit technology.

One system - all the options

DETENTION DOORS

WITHOUT DOOR ADJUSTMENT - The new modular lock system HSL-C enables the replacement of old detention locks with modern high-security locks within a few minutes. Conversion work on the detention room doors is not necessary. STUV provides you with the new detention room lock in exactly the same case dimensions as your existing old locks - as mortise lock and screw-on lock variants.

PASS DOORS

MINOR DOOR ADJUSTMENT - It is also possible to easily replace the old locks of passage doors with new HSL-C locks. With new passage door locks, the key guides on both sides are mounted on a shaft. Therefore, an additional through-hole may be required on one side. This can be done, for example, with a magnetic core drilling machine. The upper through-hole is securely closed with a blind rosette.

SAFETY IN JUST A FEW STEPS

As market leader in the field of high-security locks for the correctional system, we offer our customers planning and cost security in the realisation of retrofitting projects. We calculate to the cent so that there are no surprises for you in the end.

Replacement for

STUV

  • Single bit (8.13.)
  • Double bit (8.14.)
  • Food hatches

Chubb

  • Compact dead bold lock, automatic locking, flush-mount/concealed version
  • Compact dead bolt lock

Austen

  • Compact dead bolt lock

Deadbolt lock HSL C801X

The HSL C801X lock is specially designed for high-security environments in prisons, the police, forensic psychiatry and the military.

Product detail

Deadbolt lock HSL C175

Compact dead bold lock, automatic locking, flush-mount/concealed version

Product detail

Custody lock
HSL C301

Basquill deadbolt lock for detention room doors with single turn deadbolt exclusion, shoot bolts and mechanical deadbolt position indicator on the key guide side.

Product details

Pass door lock
HSL C101S2

Deadbolt lock for passage doors with single turn deadbolt exclusion.

Product details

Food Hatch Locks HSL C

Deadbolt locks for inspection flaps with single-turn deadbolt exclusion

Product details
Variants
Safety
Replacement
Service Concept
Why HSL-C?

HSL-C

The HSL-C system is based on a modular system. Replacement versions are already available for many single and double-bit locks. Please feel free to contact us - we will be happy to advise you.
HSL-C Locks

Replacements for other manufacturers

STUV can also provide you with state-of-the-art and dimensionally identical replacement locks for detention room and passage door locks from various other manufacturers. Please contact us!
Request replacement locks

The HSL-C replacement locks are among the most modern and reliable security components on the market. Here you will find an overview of the product features.

  • GENERAL
  • MECHANICAL STANDARDS
  • EXAMS AND CERTIFICATES
  • OPTIONAL FEATURES

GENERAL

  • Manufacturer-exclusive key profiles
  • In case of key loss or change of key: 9-fold recodable locking mechanism, recodable as often as required, without tools in five seconds per lock
  • Double-bit tumbler locking mechanism with seven tumblers fully integrated in the lock housing and protected against manipulation
  • unpickable, springless tumblers made of wear-resistant special bronze alloy with 35,000,000 possible codings
  • Very high protection against visual key duplication (Pretoria model)
  • Forend, striking plate, lock case and all functional parts made of corrosion-resistant stainless steel
  • High protection against transverse bolt forces up to 30kn
  • Maximum bolt counterforces up to 6kn

MECHANICAL STANDARDS

  • Corrosion-free stainless steel bolts
  • visual lock status indication (depending on type)
  • fully secured latch follower to protect against wire openings
  • Secured latch opening to protect against lock manipulation when the door is open
  • Anti-Removal feature when door is open
  • Fastening by means of security screws

EXAMS AND CERTIFICATES

  • Resistance classes up to RC5
  • Lock testing according to DIN EN12209
  • Fire protection test up to EI90/T90
  • Smoke protection test up to RS2

OPTIONAL FEATURES

  • Special bolt with saw protection (optional)
  • Master key function with 2 subgroups (optional)

Replacement

The HSL-C concept is very simple: old lock out, new lock with innovative security technology in. Elaborate conversion work is not necessary due to identical dimensions.

  • DETENTION ROOM
  • PASS DOORS

DETENTION ROOM

Replacement in three steps

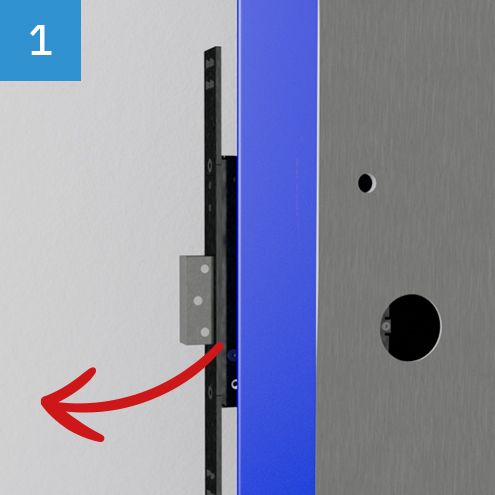

Remove the old lock
Insert new HSL-C lock
Done

PASS DOORS

Replacement in max. four steps

Remove the old lock
Drill through hole if necessary
Insert new HSL-C lock
Screw on blind rosette, done

Service

The STUV Service Concept

  • ON-SITE REPLACEMENT SERVICE
  • OPTIONAL FULL-SERVICE OPERATING CONCEPT
  • LETTER OF PROTECTION
  • ON-SITE PROTECTION LETTER

ON-SITE REPLACEMENT SERVICE

We take care of the replacement of the existing locks for you and thus ensure a smooth installation of the new locks with a 100% functional guarantee.

OPTIONAL FULL-SERVICE OPERATING CONCEPT

We only charge you once for the pure working time of the replacement. For the new HSL-C lock including full service package, you only pay a small monthly fee.

LETTER OF PROTECTION

Our all-risk protection cover for maximum cost control and the greatest possible operational security: We deposit at least 10% replacement locks with you, you have the full manufacturer's warranty during the contract period and do not pay any repair costs for locks during the contract period, regardless of the reason (e.g. sabotage, manipulation, third-party intervention, incorrect operation).

ON-SITE PROTECTION LETTER

Ideal for facilities that do not have their own service technician or want additional redundancy to ensure smooth operation. Within 3 working days at the latest, we will come to you to change a lock. To be on the safe side, we also deposit at least 10% replacement locks at your premises.

Why HSL-C?

There are three clear and unambiguous reasons why HSL-C is the lock system of choice for your facility:

  • Perfect security
  • More than 100 years of experience
  • Made in Germany

Perfect security

STUV's aim is not only to fit as many locks as possible to doors, but also to ensure that they are safe and reliable to fit. We have dedicated employees whose job is to measure and redesign old locks in facilities. In this way, we are the only provider to offer customised lock fitting.

More than 100 years of experience

STUV has been a leading manufacturer of mechanical and electronic high-security technology and lock systems for the correctional system, deportation custody, police custody and detention centres for 140 years. With over 450,000 high-security locks sold, you can complete your project successfully with us. No matter what size.

Made in Germany

100% of the locks sold by STUV are manufactured in Germany from parts produced in-house. By manufacturing locally, we have sole control over our quality process, can deliver our products quickly and easily across Europe, reduce environmental impact and employ over 170 people.

Do you have any questions about retrofitting? Talk to us!
